Hydraulic Winches

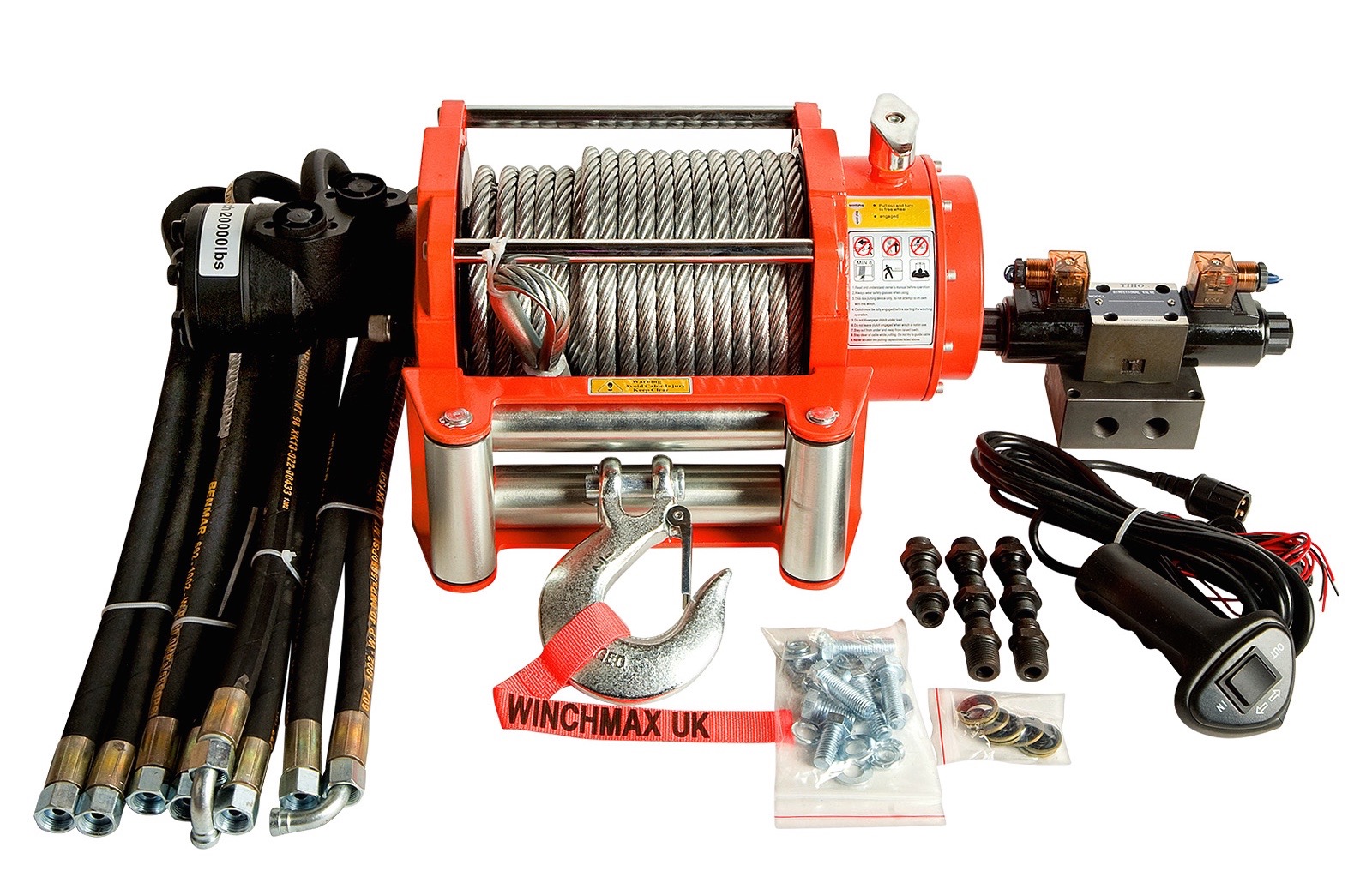

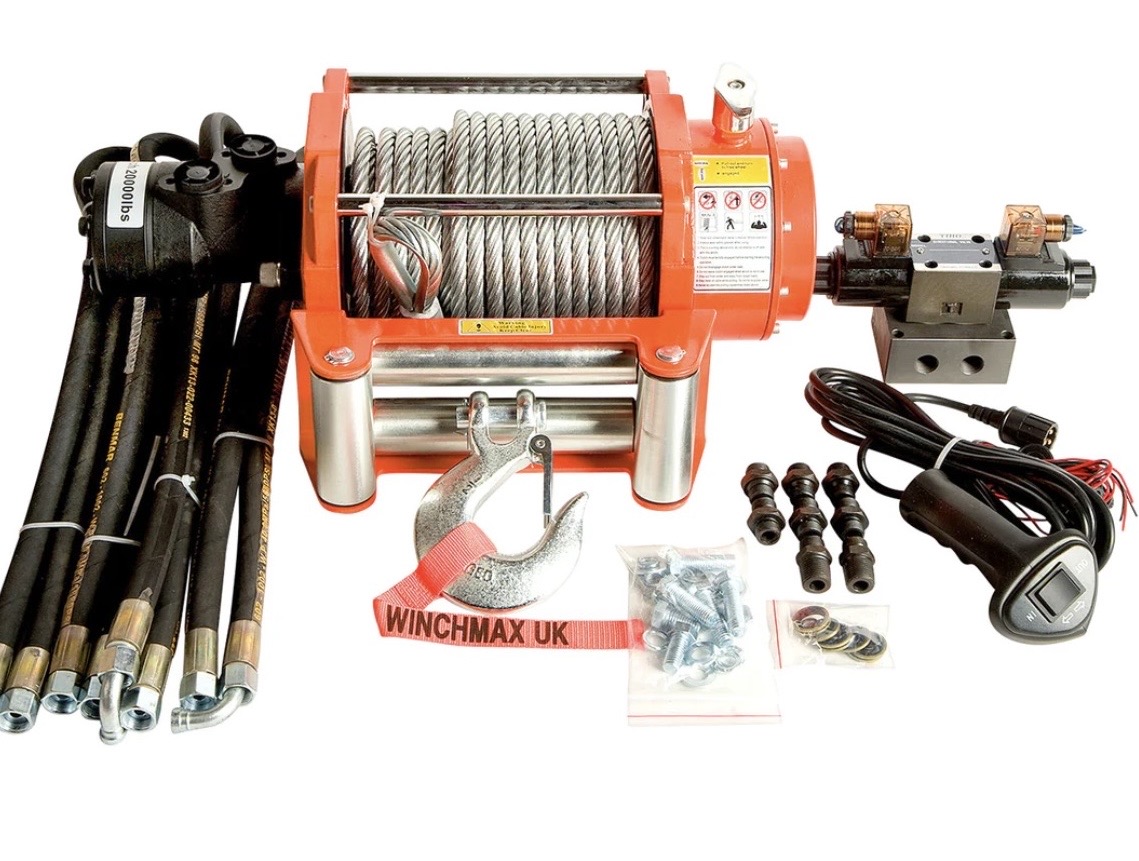

WINCHMAX HYDRAULIC Z SERIES 20000 WNCH 24v TWIN WIRELESS CONTROLS

AU $1,699.00



*12 MONTH WARRANTY* COMMERCIAL GRADE



  • 20,000lb (9.0 tons) straight line pull
  • Ultra Tough three stage gearbox
  • Sliding Ring Gear Free wheel clutch
  • Gearbox cover cylinder is machined billet steel
  • Hawse



Single line rated pull 20000lb(9072kg)
Motor Hydraulic
Control Twin wireless controls 24v
Gear train 3 Stage Planetary
Gear reduction ratio 32:1
Clutch Sliding Ring Gear
Braking Action Automatic
Drum size Diameter 88mm Length 222mm
Cable 25m  of 14mm diameter
Hawse Hawse
Flow 50-60 L/min
Pressure 10.8Mpa (108 Bar)
Finish Orange / Black
Weight GW 50kg
Overall Dimensions (LxWxH) 548x196x249mm
Mounting Bolt Pattern 10.00"±0.015"x4.50"±0.010"(254x114.3mm)
Pressure Hose Connections 18mm/1.5mm
No Load Line Speed 6.5m/min (21.3 ft/min)



WINCHMAX HYDRAULIC Z SERIES 20000 WNCH 12v TWIN WIRELESS CONTROLS

AU $1,699.00



*12 MONTH WARRANTY* COMMERCIAL GRADE



  • 20,000lb (9.0 tons) straight line pull
  • Ultra Tough three stage gearbox
  • Sliding Ring Gear Free wheel clutch
  • Gearbox cover cylinder is machined billet steel
  • Hawse



Single line rated pull 20000lb(9072kg)
Motor Hydraulic
Control Twin wireless controls 24v
Gear train 3 Stage Planetary
Gear reduction ratio 32:1
Clutch Sliding Ring Gear
Braking Action Automatic
Drum size Diameter 88mm Length 222mm
Cable 25m  of 14mm diameter
Hawse Hawse
Flow 50-60 L/min
Pressure 10.8Mpa (108 Bar)
Finish Orange / Black
Weight GW 50kg
Overall Dimensions (LxWxH) 548x196x249mm
Mounting Bolt Pattern 10.00"±0.015"x4.50"±0.010"(254x114.3mm)
Pressure Hose Connections 18mm/1.5mm
No Load Line Speed 6.5m/min (21.3 ft/min)
