12 Volt Winches

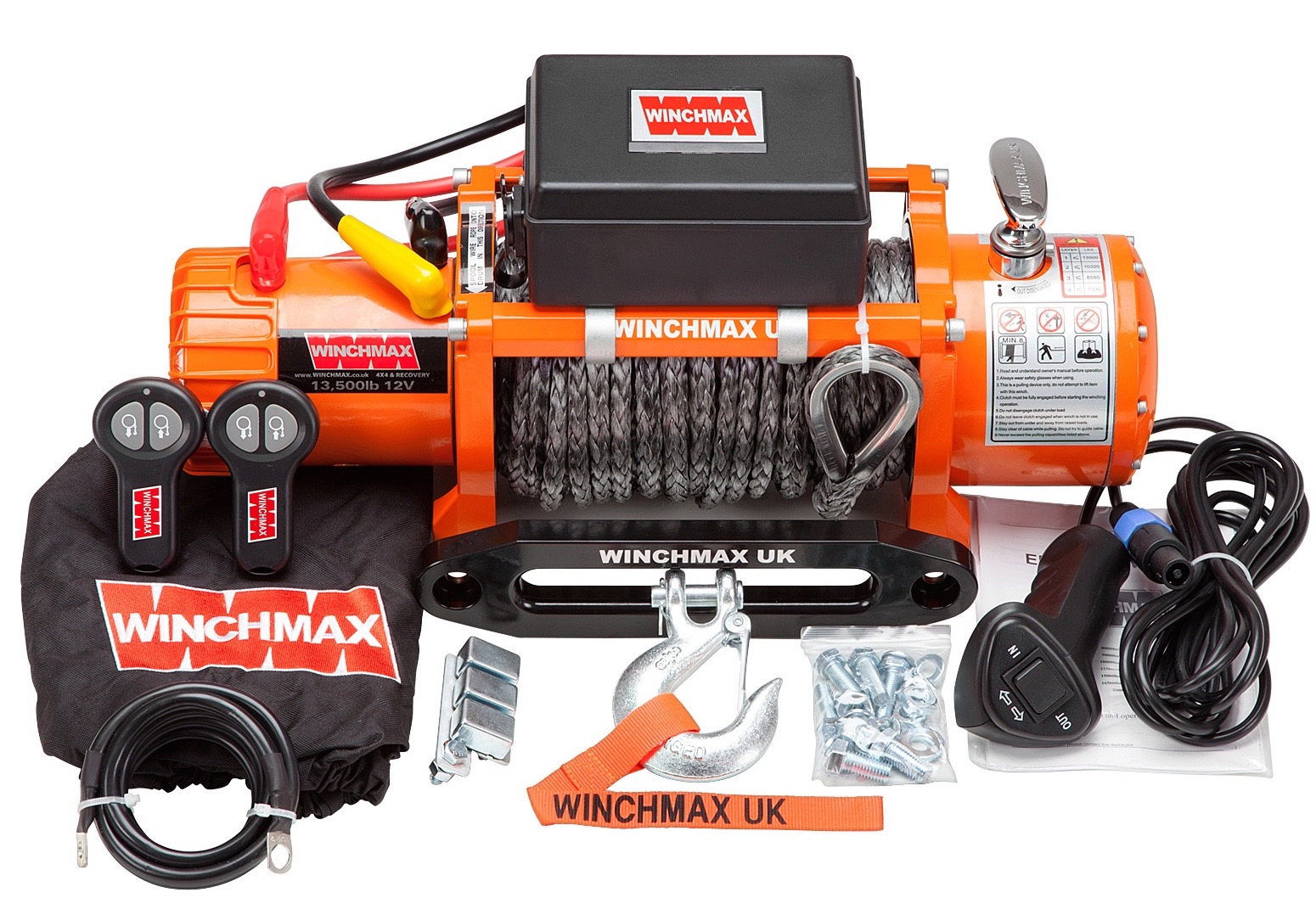

WINCHMAX 13500LB 12V ELECTRIC DYNEEMA ROPE WITH WIRELESS REMOTES

AU $899.00



 Heavy duty 13500lb recovery winch 12v

  • Dyneema rope 28M X 11MM
  • Especially optimised for recovery use.
  • Super powerful 12v 6hp series wound electric motor.
  • Power In / out removable big grip corded handheld remote control
  • Massive Ultra Tough three stage gearbox
  • Albright type solenoids
  • Sliding Ring Gear
  • Free wheel Clutch
  • Twin wireless remotes
  • Plug in controller wander lead
  • CE Certified & Built to ISO9001 Quality Management System Requirements.

  TECHNICAL SPECIFICATIONS

  • Single line rated pull - 13500 lb (6123kg)
  • Motor - 6.0hp/4.5kw, Series Wound
  • Control - Remote Switch, Extra long 4.5m lead , In and Out
  • Gear train - 3 Stage Planetary
  • Gear reduction ratio - 265:1
  • Clutch - Sliding Ring Gear
  • Braking Action - Automatic In The Drum
  • Drum size - Diameter 64mm (2.52")Length 224mm(8.82?)
  • Cable - 28m X 11mm Dyneema Rope
  • Battery - Recommended 650CCA minimum for winching
  • Battery Leads - 2 gauge, 1.83m
  • Finish - Orange
  • Weight- 28 KG
  • Overall Dimensions (L x W x H) 536 x 160 x 218mm
  • Mounting Bolt Pattern 254 x114.3mm
  • Motor Current - 65-400A
  • No Load Line Speed - 6.5m / min (21.3 ft/min)




Layer Rated

 Line pull (lb)

 Line Pull (kg)

 Total Rope On Drum (ft/m)

 1

 13,500

 6,123

 20.4/6.22

 2

 10,010

 4,540

 41/12.0

 3

 8,840

 4,009

 71/21.0

 4

 7,410

 3,361

 85/24.0



Line Pull (lb/kg)

 Line Speed ft/min (m/min)

 Motor (Amps)

 0 (0)

 24.6ft (7.5m)

 70A

 3,000 (1363)

 11.48ft (3.5m)

 138A

 6,000 (2727)

 8.86ft (2.7m)

 218A

 9,000 (4090)

 7.72ft (2.2m)

 260A

 13,500 (6123)

 5.58ft (1.7m)

415A

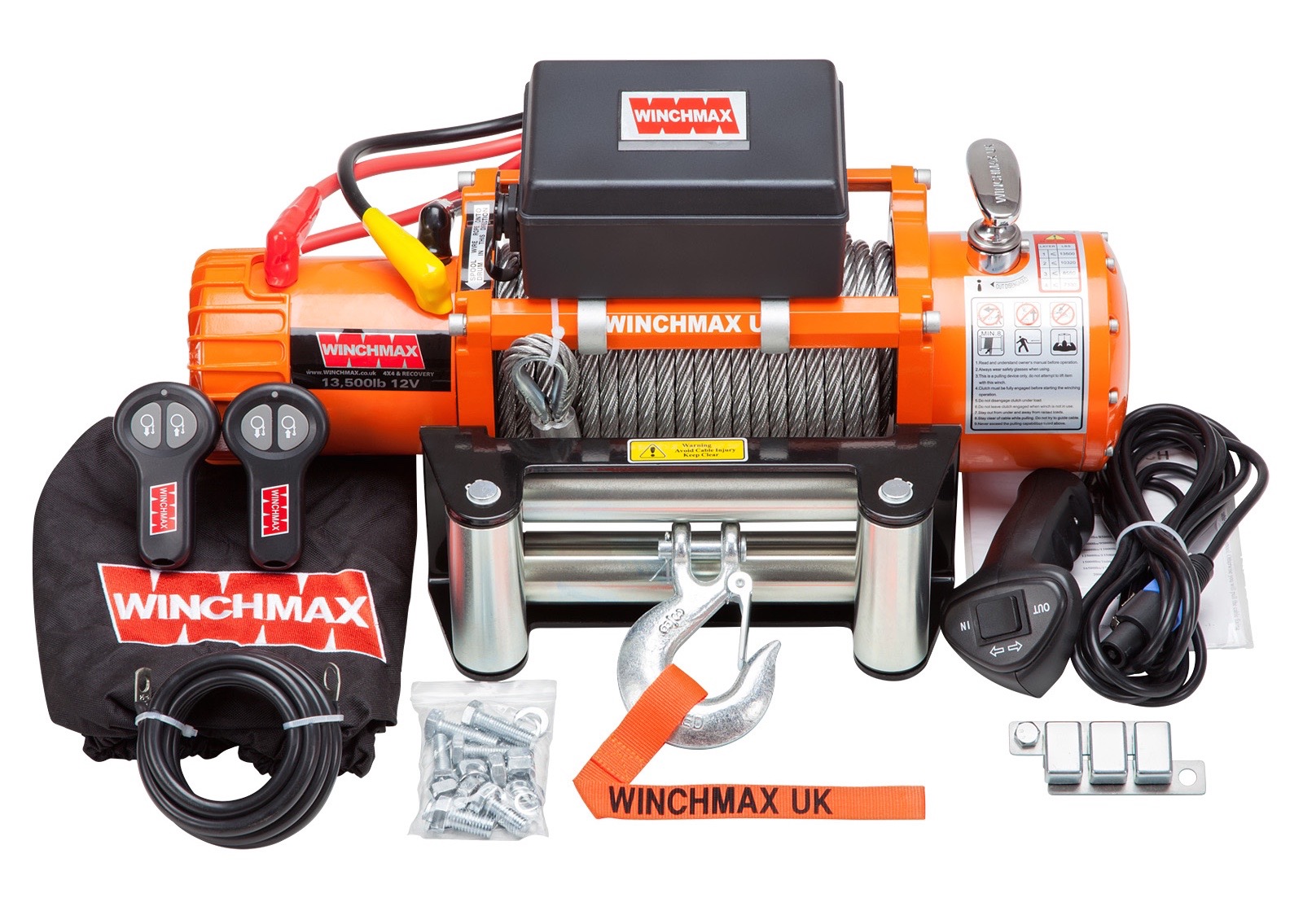

WINCHMAX 13500LB 12V ELECTRIC STEEL CABLE WINCH WITH WIRELESS REMOTES

AU $799.00





 Heavy duty 13500lb recovery winch 12v

  • Especially optimised for recovery use.
  • Super powerful 12v 6hp series wound electric motor.
  • Power In / out removable big grip corded handheld remote-control unit
  • Massive Ultra Tough three stage gearbox
  • Albright type solenoids
  • Sliding Ring Gear Free wheel clutch
  • Twin wireless remotes
  • Plug in controller wander lead
  • CE Certified & Built to ISO9001 Quality Management System Requirements.

 TECHNICAL SPECIFICATIONS

  • Single line rated pull - 13500 lb (6123kg)
  • Motor - 6.0hp/4.5kw, Series Wound
  • Control - Remote Switch, Extra long 4.5m lead  In and Out
  • Gear train - 3 Stage Planetary
  • Gear reduction ratio - 265:1
  • Clutch - Sliding Ring Gear
  • Braking Action - Automatic In The Drum
  • Drum size - Diameter 64mm Length 224mm
  • Cable - 26m X 9.5mm Steel cable
  • Battery - Recommended 650CCA minimum for winching
  • Battery Leads - 2 gauge, 1.83m
  • Finish - Orange
  • Weight- 40 KG
  • Overall Dimensions (L x W x H) 536 x 160 x 218m
  • Mounting Bolt Pattern - 254x114.3mm
  • Motor Current - 65-400A
  • No Load Line Speed - 6.5m/min (21.3 ft/min)



Layer Rated

 Line pull (lb)

 Line Pull (kg)

 Total Rope On Drum (ft/m)

 1

 13,500

 6,123

 20.4/6.22

2

 10,010

 4,540

 41/12.0

 3

 8,840

 4,009

 71/21.0

 4

 7,410

 3,361

 85/24.0



Line Pull (lb/kg)

 Line Speed ft/min (m/min)

 Motor (Amps)

 0 (0)

 24.6ft (7.5m)

 70A

 3,000 (1363)

 11.48ft (3.5m)

 138A

 6,000 (2727)

 8.86ft (2.7m)

 218A

 9,000 (4090)

 7.72ft (2.2m)

 260A

 13,500 (6123)

 5.58ft (1.7m)

 415A





FREIGHT

FREIGHT TO COMMERCIAL ADDRESS OR DEPOT PICK UP

WINCHMAX 17000LB 12V ELECTRIC STEEL CABLE WINCH WITH WIRELESS REMOTES

AU $1,099.00



17,000LB (7,711KG) 12V ELECTRIC RECOVERY WINCH



 26M X 12MM STEEL CABLE  TWIN WIRELESS REMOTE CONTROL



Ideal for recovery trucks and 4x4s over 3.5T



FEATURES

  • 17,000lb (7,711kg) straight-line pull 12v electric winch.
  • Latest technology long-range wireless remote controls, twin handsets.
  • Super powerful 12v 6.8hp/5.1kw series wound electric motor.
  • Massive ultra-tough three-stage gearbox with hardened steel gears.
  • Motor and gearbox casing machined from billet steel for maximum impact protection.
  • 26m x 12mm multi-strand Steel cable rope.
  • New through-drum rope connection with grub screw clamp for ultra-secure rope attachment to drum.
  • Orange competition hook with safety- catch and hand saver.
  • Tough four roller fairlead with zinc plated rollers
  • Heavy-duty one-piece solenoid, latest design, ultra-reliable, IP67 waterproof.
  • Big grip controller for power in/out with extra-long 4.5m wander lead.
  • Sliding ring gear freewheel clutch.
  • High tensile fixing bolt kit.
  • Strong WINCHMAX branded cover to protect from water and road grime.
  • Heavy-duty & built to last - gross weight 50kg.
  • CE certified & built to ISO9001 quality management system requirements.



Single Line Rated Pull

17,000lb (7,692kg)

Motor

12v 6.8hp/5.1kw, series wound

Control

Remote switch, 4.5m lead, in and out

Gear Train

3 stage planetary

Gear Reduction Ratio

358:1

Clutch

Sliding ring gear

Braking Action

Automatic in the drum

Drum Size

Diameter 85mm (3.4") Length 224mm (8.82”)

Drum Finish

Black, painted

Cable

26m x 12mm Steel Cable

Hook

Competition hook with safety catch, orange

Fairlead

Four Roller Fairlead

Battery

Recommended 650CCA minimum for winching

Battery Leads

2 gauge, 1.83m (72”) 35mmsq - 6.5mm Diameter

Winch Finish

Original Orange powder coated

Weight (GW)

58kg (Boxed)

Overall Dimensions (LxWxH)

555 x 196 x 249mm

Mounting Bolt Pattern

10.00” ±0.015" x 4.50” ±0.010" (254 x 114.3mm)

Motor Current

65-500A

No Load Line Speed

7.28m/min (23.9 ft/min)



Layer Rated

 Line pull (lb)

 Line Pull (kg)

 Total Rope On Drum (ft/m)

 1

 17,000

 7,727

 20.4/6.22

 2

 15,514

 7,037

 35.43/10.8

 3

 12,956

 5,877

 59.55/18.15

 4

 11,016

 5,336

 85.30/26



Line Pull (lb/kg)

 Line Speed ft/min (m/min)

 Motor (Amps)

 0 (0)

 23.9ft (7.28m)

 68A

 4,000 (1,814)

 9.3ft (2.8m)

 155A

 8,000 (3,629)

 6.0ft (1.83m)

 235A

 12,000 (5,443)

 4.4ft (1.34m)

 330A

 15,000 (6,818)

 3.30ft (1.0m)

 435A

 17,000 (7,727)

 2.95ft (0.9m)

 520A



FREIGHT

FREIGHT TO COMMERCIAL ADDRESS OR DEPOT PICK UP

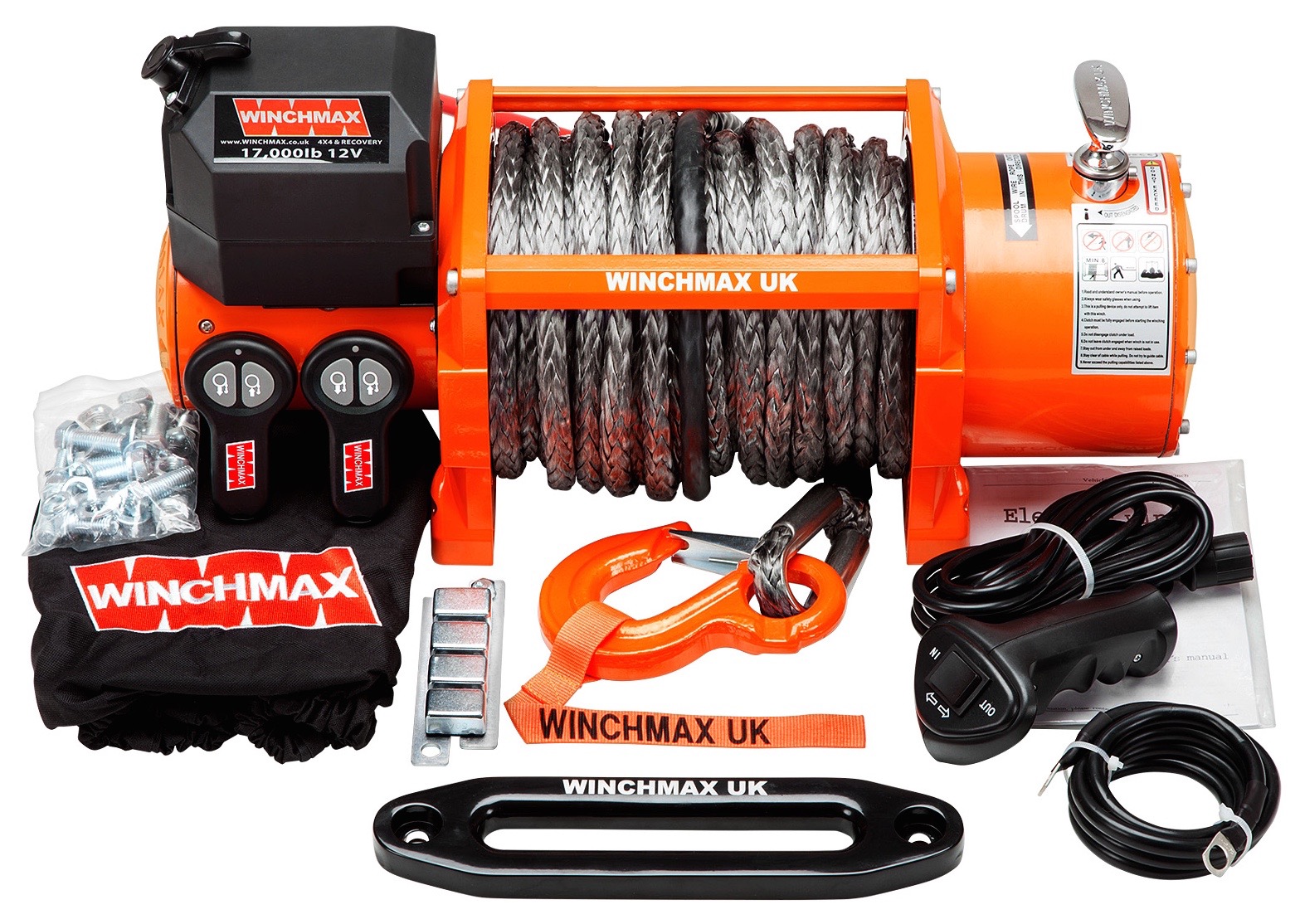

WINCHMAX 17000LB 12V ELECTRIC WINCH DYNEEMA ROPE WITH WIRELESS REMOTES

AU $1,299.00



WINCHMAX

 17,000LB (7,711KG) 12V ELECTRIC RECOVERY WINCH

 25M X 13MM  DYNEEMA ROPE, TWIN WIRELESS REMOTE CONTROL



Ideal for recovery trucks and 4x4s over 3.5T



FEATURES

·       17,000lb (7,711kg) straight-line pull 12v electric winch.

·       Latest technology long-range wireless remote controls, twin handsets.

·       Super powerful 12v 6.8hp/5.1kw series wound electric motor.

·       Massive ultra-tough three-stage gearbox with hardened steel gears.

·       Motor and gearbox casing machined from billet steel for maximum impact protection.

·       25m x 13mm Dyneema SK75 multi-strand synthetic rope.

·       New through-drum rope connection with grub screw clamp for ultra-secure rope attachment to drum.

·       Orange competition hook with safety catch and hand saver.

·       Aluminium hawse fairlead. Precision CNC milled with laser-etched WINCHMAX branding.

·       Heavy-duty one-piece solenoid, latest design, ultra-reliable, IP67 waterproof.

·       Big grip controller for power in/out with extra-long 4.5m wander lead.

·       Sliding ring gear freewheel clutch.

·       High tensile fixing bolt kit.

·       Strong WINCHMAX branded cover to protect from water and road grime.

·       Heavy-duty & built to last - gross weight 50kg.

·       CE certified & built to ISO9001 quality management system requirements.



Single Line Rated Pull

17,000lb (7,692kg)

Motor

12v 6.8hp/5.1kw, series wound

Control

Remote switch, 4.5m lead, in and out

Gear Train

3 stage planetary

Gear Reduction Ratio

358:1

Clutch

Sliding ring gear

Braking Action

Automatic in the drum

Drum Size

Diameter 85mm (3.4") Length 224mm (8.82”)

Drum Finish

Black, painted

Cable

25m x13mm Dyneema SK75 synthetic rope

Hook

Competition hook with safety catch, orange

Fairlead

Aluminium hawse

Battery

Recommended 650CCA minimum for winching

Battery Leads

2 gauge, 1.83m (72”) 35mmsq - 6.5mm Diameter

Winch Finish

Original Orange powder coated

Weight (GW)

50kg (110lb)

Overall Dimensions (LxWxH)

555 x 196 x 249mm

Mounting Bolt Pattern

10.00” ±0.015" x 4.50” ±0.010" (254 x 114.3mm)

Motor Current

65-500A

No Load Line Speed

7.28m/min (23.9 ft/min)













Layer Rated

 Line pull (lb)

 Line Pull (kg)

 Total Rope On Drum (ft/m)

 1

 17,000

 7,727

 20.4/6.22

 2

 15,514

 7,037

 35.43/10.8

 3

 12,956

 5,877

 59.55/18.15

 4

 11,016

 5,336

 85.30/26





Line Pull (lb/kg)

 Line Speed ft/min (m/min)

 Motor (Amps)

 0 (0)

 23.9ft (7.28m)

 68A

 4,000 (1,814)

 9.3ft (2.8m)

 155A

 8,000 (3,629)

 6.0ft (1.83m)

 235A

 12,000 (5,443)

 4.4ft (1.34m)

 330A

 15,000 (6,818)

 3.30ft (1.0m)

 435A

 17,000 (7,727)

 2.95ft (0.9m)

 520A



FREIGHT

 TO COMMERCIAL BUSINESS ADDRESS OR DEPOT PICKUP

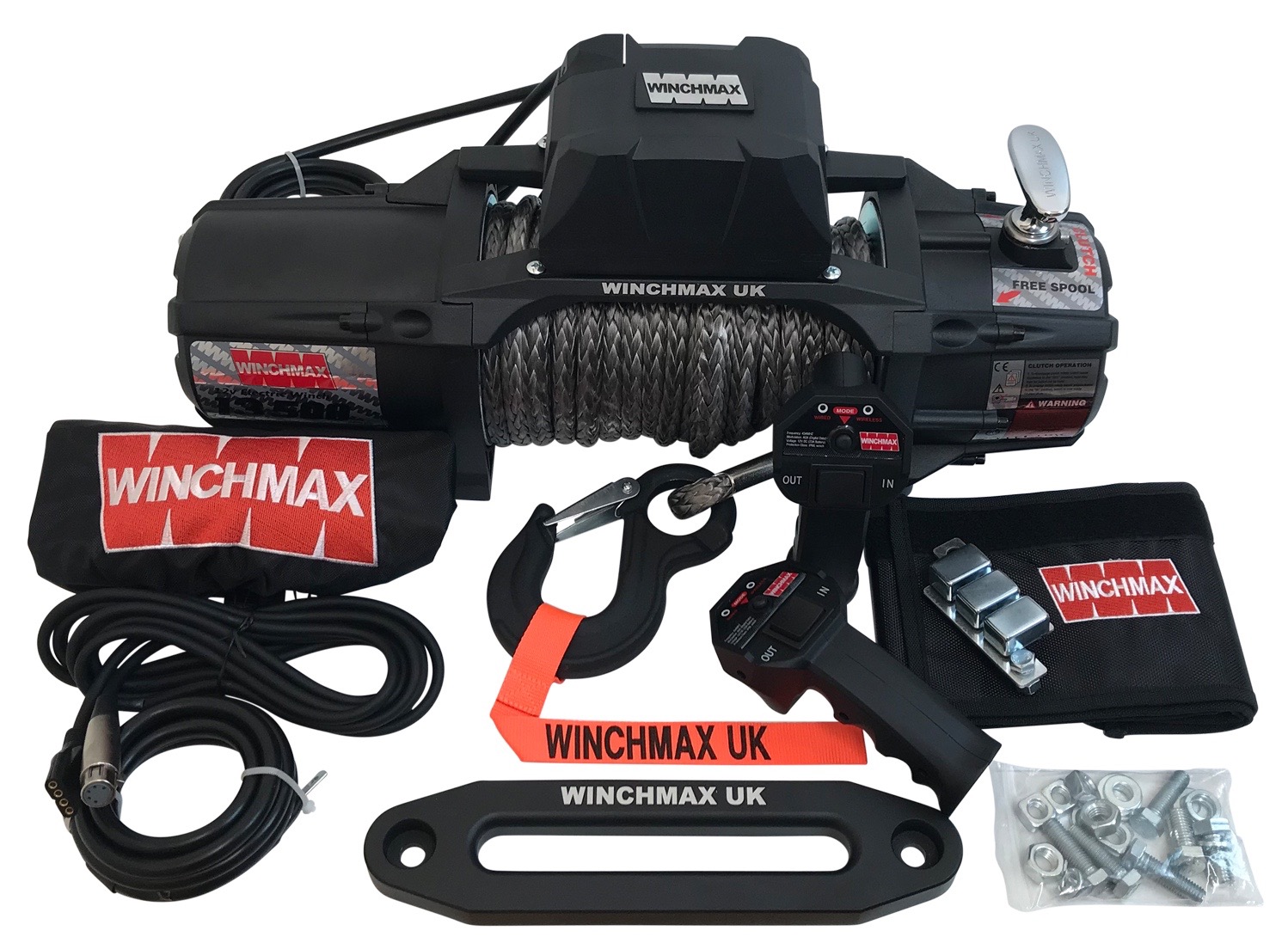

WINCHMAX MILITARY SPEC 13500 LB 12V DYNEEMA ROPE ELECTRIC WINCH WITH TWIN WIRESS REMOTES

AU $899.00



 13500lb SL Series Military Grade 12V Electric Winch

  • Dyneema rope 28M X 11 MM
  • Twin Wireless Remote Control
  • Military-grade with improved anti-corrosion measures.
  • Wireless remote controls, twin handsets.
  • 12v 6.8hp / 5.1 kw series wound electric motor.
  • Ultra-tough three-stage gearbox with hardened steel gears.
  • Motor and gearbox casing machined from billet steel for maximum impact protection.
  • Competition hook
  • Heavy-duty one-piece solenoid IP67 waterproof.
  • Power in/out big grip wander lead with extra-long 4.5m cord.
  • Upgraded water seals.
  • Stainless steel fixings.
  • Galvanised steel drum.
  • Sliding ring gear freewheel clutch.
  • High tensile fixing bolt kit.
  • Strong WINCHMAX branded cover to protect from water and road grime
  • CE Certified & Built to ISO9001 Quality Management System Requirements.



TECHNICAL SPECIFICATIONS

  • Single line rated pull - 13500 lb (6123kg)
  • Motor - 6.8hp/5.1kw, Series Wound
  • Control - Remote Switch, Extra-long 4.5m lead, In and Out
  • Gear train - 3 Stage Planetary
  • Gear reduction ratio - 265:1
  • Clutch - Sliding Ring Gear
  • Braking Action - Automatic in the Drum
  • Drum size - Diameter 64mm Length 224mm
  • Cable - 28m x 11mm Dyneema Rope
  • Battery - Recommended 650CCA minimum for winching
  • Battery Leads - 2 gauge, 1.83m
  • Winch Finnish - Matt Black
  • Weight- 28KG
  • Overall Dimensions (L x W x H) 536 x 160 x 218mm
  • Mounting Bolt Pattern -254x114.3mm
  • Motor Current - 65-500A
  • No Load Line Speed - 7.5m/min (24.6 ft/min)
  • Waterproof - IP67 Rating



Layer Rated

 Line pull (lb)

 Line Pull (kg)

 Total Rope On Drum (ft/m)

 1

 13,500

 6,123

 20.4/6.22

 2

 10,010

 4,540

 41/12.0

 3

 8,840

 4,009

 71/21.0

 4

 7,410

 3,361

 85/24.0





Line Pull (lb/kg)

 Line Speed ft/min (m/min)

 Motor (Amps)

 0 (0)

 24.6ft (7.5m)

 70A

 3,000 (1363)

 11.48ft (3.5m)

 138A

 6,000 (2727)

 8.86ft (2.7m)

 218A

 9,000 (4090)

 7.72ft (2.2m)

 260A

 13,500 (6123)

 5.58ft (1.7m)

 415A



MIL SPEC ATV 3000 12V ELECTRIC WINCH DYNEEMA

AU $299.00



3,000LB (1,361KG) MILITARY-GRADE 12V ELECTRIC WINCH

 DYNEEMA ROPE TWIN WIRELESS REMOTE CONTROLS.

Includes mounting plate



Ideal for use on boat trailers, ATVs and light utility vehicles



FEATURES



3,000lb (1,361kg) straight-line pull 12v electric winch.

Military-grade with improved anti-corrosion measures.

· Latest technology long-range wireless remote controls, twin handsets.

· Super powerful 12v permanent magnetic electric motor.

· Ultra-tough three-stage gearbox with hardened steel gears.

· 15.5m x 5mm Dyneema rope

· New through-drum rope connection with grub screw clamp for ultra-secure rope attachment to drum.

· 1/4 Inch grade 70 forged hook with safety catch, zinc plated for corrosion resistance and hand saver.

· Fairlead hawse

· Heavy-duty one-piece solenoid, latest design, ultra-reliable, IP67 waterproof.

· Power in/out rocker switch complete with 2.5m long connection and handlebar mounting

  bracket.

· Free-wheel clutch.

· Stainless steel crossbars and fixings.

· Upgraded water seals.

· High tensile fixing bolt kit.

·  2 x 180cm battery power cables, 2x 90cm motor power cables.

·  Strong WINCHMAX branded cover to protect from water and road grime.

·  Heavy-duty & built to last - gross weight 12kg.

·  CE certified & built to ISO9001 quality management system requirements.



Single Line Rated Pull

3,000lb (1,361kg)

Motor

12v 1.5hp permanent magnetic motor

Control

Remote rocker switch, handlebar mount kit, in and out

Gear Train

3 stage planetary

Gear Reduction Ratio

136:1

Clutch

Cam activated free spool

Braking Action

Automatic in the drum

Drum Size

Diameter 50mm (2.0") Length 75mm (2.9”)

Drum Finish

Aluminium

Cable

15.5m x 5mm Dyneema rope

Hook

Clevis hook 1/4-inch, zinc plated

Fairlead

Hawse

Battery

Recommended 12Ah minimum for winching

Battery Leads

6 gauge, 1.7m 15mmsq - 4.2mm diameter

Finish

Matt black (low light paint)

Weight (GW)

12kg

 Dimensions (LxWxH)

339 x 110 x 114 mm

Mounting Bolt Pattern

126 x 76 mm

Motor Current

15-200A

No Load Line Speed

8.3m/min (27.2 ft/min)

Wireless Remote

Long Range Wireless Remote Control x 2



Layer Rated

 Line pull (lb)

 Line Pull (kg)

 Total Rope On Drum (ft/m)

 1

 3,000

 1,361

 8.85 (2.7)

 2

 2,561

 1,162

 19.22 (5.86)

 3

 2,234

 1,013

 31.11 (9.48)

4

 1,981

 899

 44.52 (13.58)

5

 1,779

 807

 50.0 (15.5)



Line Pull (lb/kg)

 Line Speed ft/min (m/min)

 Motor (Amps)

 0 (0)

 27ft (8.3m)

 10A

 500 (227)

 20ft (6.1m)

 21A

 1,000 (454)

 16ft (4.9m)

 32A

 2,000 (907)

 9ft (2.7m)

 65A

 3,000 (1361)

 5ft (1.5m)

 95A

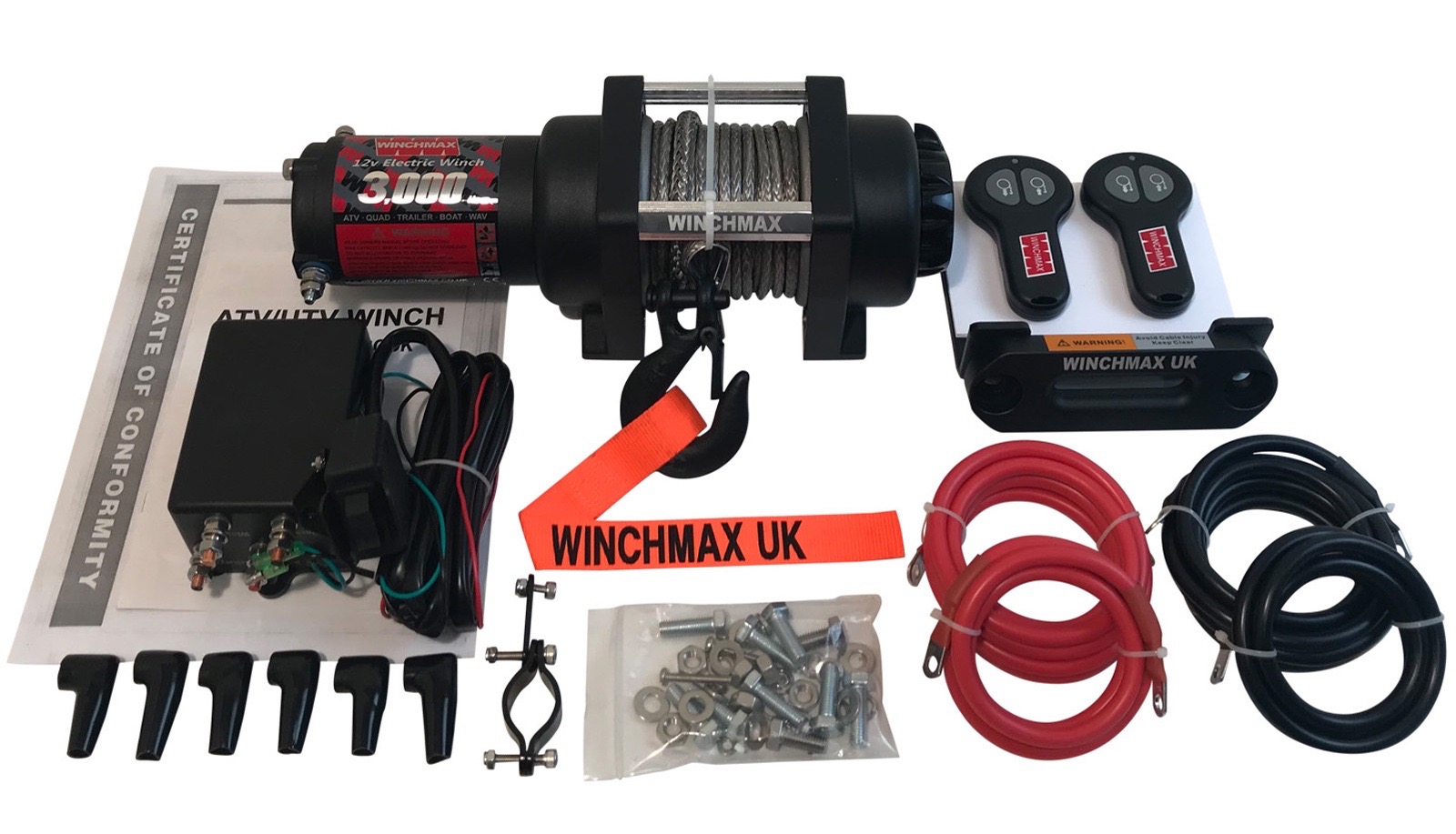

MIL SPEC ATV 3000 12V ELECTRIC WINCH STEEL CABLE

AU $269.00



3,000LB (1,361KG) MILITARY-GRADE 12V ELECTRIC WINCH

 STEEL CABLE, TWIN WIRELESS REMOTE CONTROLS.

Includes mounting plate



Ideal for use on boat trailers, ATVs and light utility vehicles



FEATURES



3,000lb (1,361kg) straight-line pull 12v electric winch.

Military-grade with improved anti-corrosion measures.

·       Latest technology long-range wireless remote controls, twin handsets.

·       Super powerful 12v permanent magnetic electric motor.

·       Ultra-tough three-stage gearbox with hardened steel gears.

·       15.5m x 5mm Stainless Steel cable

·       New through-drum rope connection with grub screw clamp for ultra-secure rope attachment to drum.

·       1/4 Inch grade 70 forged hook with safety catch, zinc plated for corrosion resistance and hand saver.

·       Tough four roller fairlead stainless rollers

·       Heavy-duty one-piece solenoid, latest design, ultra-reliable, IP67 waterproof.

·       Power in/out rocker switch complete with 2.5m long connection and handlebar mounting bracket.

·       Free-wheel clutch.

·       Stainless steel crossbars and fixings.

·       Upgraded water seals.

·       High tensile fixing bolt kit.

·       2 x 180cm battery power cables, 2x 90cm motor power cables.

·       Strong WINCHMAX branded cover to protect from water and road grime.

·       Heavy-duty & built to last - gross weight 12kg.

·       CE certified & built to ISO9001 quality management system requirements.



Single Line Rated Pull

3,000lb (1,361kg)

Motor

12v 1.5hp permanent magnetic motor

Control

Remote rocker switch, handlebar mount kit, in and out

Gear Train

3 stage planetary

Gear Reduction Ratio

136:1

Clutch

Cam activated free spool

Braking Action

Automatic in the drum

Drum Size

Diameter 50mm (2.0") Length 75mm (2.9”)

Drum Finish

Aluminium

Cable

15.5m x 5mm stainless steel wire rope

Hook

Clevis hook 1/4-inch, zinc plated

Fairlead

4 Way stainless steel roller fairlead

Battery

Recommended 12Ah minimum for winching

Battery Leads

6 gauge, 1.7m 15mmsq - 4.2mm diameter

Finish

Matt black (low light paint)

Weight (GW)

12kg

Overall Dimensions(LxWxH)

339 x 110 x 114 mm

Mounting Bolt Pattern

126 x 76 mm

Motor Current

15-200A

No Load Line Speed

8.3m/min (27.2 ft/min)

Wireless Remote

Long Range Wireless Remote Control x 2



Layer Rated

 Line pull (lb)

 Line Pull (kg)

 Total Rope On Drum (ft/m)

 1

 3,000

 1,361

 8.85 (2.7)

 2

 2,561

 1,162

 19.22 (5.86)

 3

 2,234

 1,013

 31.11 (9.48)

4

 1,981

 899

 44.52 (13.58)

5

 1,779

 807

 50.0 (15.5)



Line Pull (lb/kg)

 Line Speed ft/min (m/min)

 Motor (Amps)

 0 (0)

 27ft (8.3m)

 10A

 500 (227)

 20ft (6.1m)

 21A

 1,000 (454)

 16ft (4.9m)

 32A

 2,000 (907)

 9ft (2.7m)

 65A

 3,000 (1361)

 5ft (1.5m)

 95A



WINCHMAX 12V 20000LB RECOVERY WINCH

AU $1,399.00





WINCHMAX

20,000lb (9,072kg) Heavy Recovery  12v Electric Winch

 Steel Rope, Twin Wireless Remote Control

Integral roller fairlead, no mounting plate required.



Features

  • 20,000lb (9,072kg) straight-line pull Z Series 24v electric winch.
  • Latest technology long-range wireless remote controls, twin handsets.
  • Super powerful 12v 7.0hp/5.2kw series wound electric motor.
  • Power in/out handheld control unit - with a large emergency stop button.
  • Massive ultra-tough four-stage gearbox with hardened steel gears.
  • Motor and gearbox casing machined from billet steel for maximum impact protection.
  • 25m x 14mm galvanized steel wire rope.
  • New through-drum rope connection with grub screw clamp for ultra-secure rope attachment to drum.
  • 1/2 Inch grade 70 forged clevis hook with safety catch, zinc plated for corrosion resistance and hand saver.
  • Super heavy-duty four roller fairlead - built into the winch (no mounting plate required).
  • Stainless steel perforated drum cover provides enhanced safety whilst still allowing the operator to monitor the rope spooling.
  • Sliding ring gear freewheel clutch.
  • High tensile fixing bolt kit.
  • Strong WINCHMAX branded cover to protect from water and road grime.
  • Heavy duty & built to last - gross weight 85kg.
  • CE certified & built to ISO9001 quality management system requirements.



Single Line rated pull

20,000lb (9,072kg)

Motor

12v 7.0HP/5.2KW, series wound

Motor Current

75-570A

Control

Remote switch, 4.5m lead, in & out

Gear Train

4 stage planetary

Gear Reduction Ratio

544:1

Clutch

Sliding ring gear

Braking Action

Automatic

Drum Size

Diameter 89mm Length 228.6mm

Drum Finish

Black, painted

Cable

25m x 14mm galvanized steel wire rope

Hook

Clevis hook 1/2 inch

Fairlead

Heavy-duty 4 way roller fairlead

Battery

Recommended: 750CCA Minimum For Winching

Winch Finish

Original Orange powder coated

Weight (GW)

85kg (187lb)

Overall Dimensions (LxWxH)

576 x 302 x 305mm

Mounting Bolt Pattern

10.00” x 4.50” (254 x 114.3mm)

No Load Line Speed

5.1m/min (16.73 ft/min)



Layer Rated

 Line pull (lb)

 Line Pull (kg)

 Total Rope On Drum (ft/m)

 1

 20,000

 9,091

15.62/4.76

 2

 15,725

 7,132

 35.43/10.8

 3

 12,956

 5,877

 59.55/18.15

 4

 11,016

 5,336

 85.30/26



Line Pull (lb/kg)

 Line Speed ft/min (m/min)

 Motor (Amps)

 0 (0)

 16.73ft (5.1m)

 82A

 4,000 (1,814)

 8.20ft (2.5m)

 128A

 8,000 (3,629)

 7.22ft (2.2m)

 210A

 12,000 (5,443)

 6.23ft (1.9m)

 278A

 16,000 (7,257)

 4.92ft (1.5m)

 365A

 20,000 (9,072)

 3.6ft (1.1m)

 420A





FREIGHT

FREIGHT TO COMMERCIAL ADDRESS OR DEPOT PICK UP
