Winchmax WM13000 4x4 / Recovery Winch Technical Specification

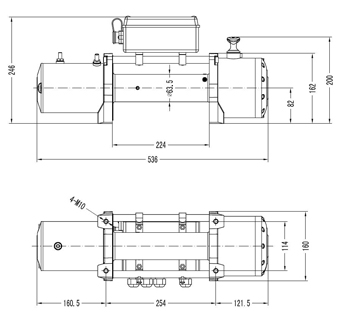

Winch Dimensions and mounting holes

Winchmax Australia: winch specifications

WM13000

Performance 12VDC
Single line rated pull 13000lb(5900kg)
Motor 6.0hp/4.5kw,Series Wound
Control Remote switch,12ft(3.7m)lead
Gear train 3 Stage Planetary
Gear reduction ratio 265.2:1
Clutch Sliding Ring Gear
Braking Action Automatic In-The-Drum
Drum size Diameter 2.52"(64mm) Length 8.82"(224mm)
Cable 88ft of 3/8" diameter (27m of 9.5mm diameter)
Fairlead 4-Way Roller Fairlead
Remote Control Included
Battery Recommended:650CCA minimum for winching
Battery Leads 2 gauge,72"(1.83m)
NW/GW 42kg/46kg
Overall dimensions (LxWxH)21.3"x6.3"x8.6"(552x160x218mm)
Mounting Bolt Pattern 10.000.015" x4.500.010"(254x114.3mm)
MEAS 61x19.5x48.5cm(1pc)
Steel cable weight 42kg
Synthetic rope weight 29kg

Pull, Speed, Amperes, Volts (First Layer)

Line Pull (lbs./ kg) Line Speed FPM(m/min) Motor (Amps)

0 22.0ft (6.8m) 80
4000 (1814) 11.5ft (3.5m) 170
6000 (2722) 9.8ft (3.0m) 210
8000 (3629) 8.2ft (2.5m) 250
10000 (4536) 6.8ft (2.1m) 300
13000 (5443) 5.6ft (1.7m) 360

Line Pull And Rope Capacity In Layer

Layer Rated Line Pull (lbs/kgs) Total Rope On Drum (ft/m )

1 13000 (5900) 17.6 (5.4)
2 9530 (4322) 37.0 (11.4)
3 7920 (3590) 63.0 (19.4)
4 6770 (3075) 88.0 (26.8)
