24 Volt Winches

WINCHMAX SL 13500lB 24V ELECTRIC WINCH SYNTHETIC ROPE WITH WIRELESS REMOTES

AU $749.00



*12 MONTH WARRANTY* COMMERCIAL GRADE



  • 13,500lb ( 6 tons) straight line pull



  • Super powerful 24v 6hp series wound electric motor



  • Power In / out removable big grip corded handheld remote control unit



  • Tough three stage gearbox



  • Up-rated one piece Albright type solenoid for ultra reliable operation.



  • Free-wheel clutch



  • Aluminum hawse fairlead



  • Fitted with 28m of UHMWPE 11mm DYNEEMA synthetic rope.



  • Safer stronger & lighter than wire rope



  • Flexible non kink - easy to handle & wont splinter



  • Does not store energy like steel cable reducing whiplash risk



  • Floats in water



  • Over 8000KG breaking strain



Single line rated pull 13500lb(5700kg)
Motor 6.0hp/4.5kw,Series Wound
Control Remote Switch, 12ft(3.7m) lead, In and Out
Gear train 3 Stage Planetary
Gear reduction ratio 265:01:00
Clutch Sliding Ring Gear
Braking Action Automatic In The Drum
Drum size Diameter 64mm (2.52") Length 224mm(8.82")
Cable 28M x 11mm Synthetic Rope Dyneema
Fairlead / Hawse Aluminum hawse
Battery Recommended 650CCA minimum for winching
Battery Leads 2 gauge, 1.83m (72")
Finish Orange
Weight GW 29 KG
Overall Dimensions (LxWxH) 562x160x218mm (21.3"x6.3"x8.6")
Mounting Bolt Pattern 10.00"±0.015"x4.50"±0.010"(254x114.3mm)
Motor Current 65-400A
No Load Line Speed 6.5m/min (21.3 ft/min)

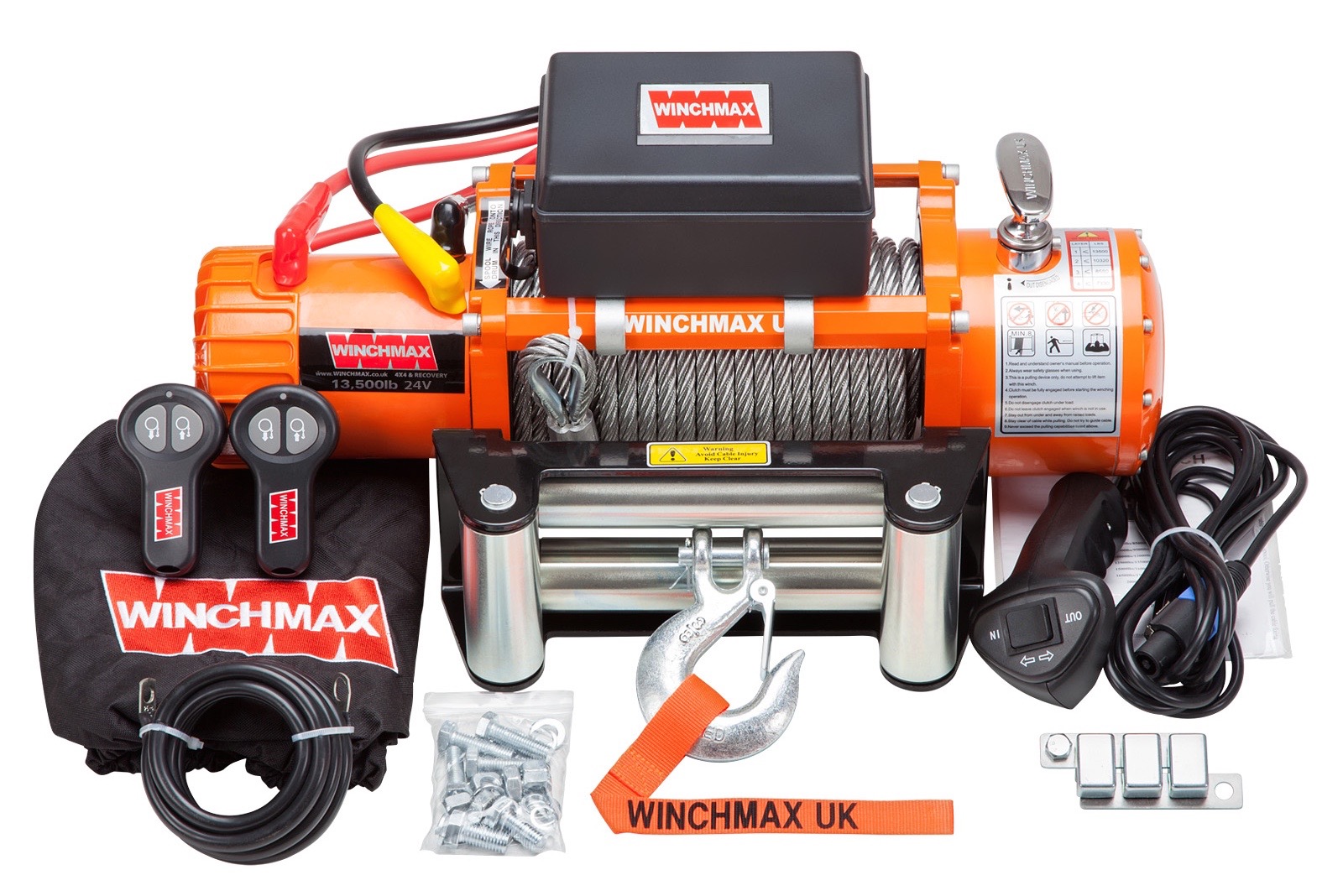

WINCHMAX 13500LB 24V ELECTRIC STEEL CABLE WINCH WITH WIRELESS REMOTES

AU $599.00



*12 MONTH WARRANTY* COMMERCIAL GRADE



  • Heavy-duty recovery winch 24v



  • 13,500lb (more than 6 tons) straight line pull



  • Super powerful 24V 6hp series wound electric motor



  • Power In / out removable big grip extra long (4.5m) corded handheld remote control unit



  • Tough three - stage gearbox



  • Albright type solenoids



  • Free wheel clutch



  • Super heavy- duty 4 roller fairlead



  • Twin wireless hand-sets



Single line rated pull 13500lb
Motor 6.0hp/4.5kw,Series Wound
Control Remote Switch, Extra long 4.5m lead , In and Out
Gear train 3 Stage Planetary
Gear reduction ratio 265:01:00
Clutch Sliding Ring Gear
Braking Action Automatic In The Drum
Drum size Diameter 64mm (2.52")Length 224mm(8.82")
Cable 24m (78ft) of 10mm diameter
Fairlead 4-Way Roller Fairlead
Battery Recommended 650CCA minimum for winching
Battery Leads 2 gauge, 1.83m (72")
Finish Orange
Weight GW 43KG
Overall Dimensions (LxWxH) 562x160x218mm (21.3"x6.3"x8.6")
Mounting Bolt Pattern 10.00"±0.015"x4.50"±0.010"(254x114.3mm)
Motor Current 65-400A
No Load Line Speed 6.5m/min (21.3 ft/min)



WINCHMAX 17000LB 24V ELECTRIC WINCH DYNEEMA ROPE WITH WIRELESS REMOTES

AU $999.00



*12 MONTH WARRANTY* COMMERCIAL GRADE



  • 17,000lb (almost nearly 7.7 tons) straight line pull
  • 24V Heavy- duty recovery winch.
  • Super powerful 24V 6hp series wound electric motor.
  • Power In / out removable big grip corded handheld remote control unit
  • Massive Ultra Tough three stage gearbox
  • Albright type solenoids
  • Sliding Ring Gear Free wheel clutch
  • New upgrade; gearbox cover cylinder is now machined billet steel for ultimate protection from accidental impact damage
  • Pair of long- range heavy- duty wireless remotes



Single line rated pull 17000lb(7692kg)
Motor 6.0hp/4.5kw,Series Wound
Control Remote Switch, 12ft(3.7m) lead, In and Out
Gear train 3 Stage Planetary
Gear reduction ratio 358:01:00
Clutch Sliding Ring Gear
Braking Action Automatic In The Drum
Drum size Diameter 85mm (3.4") Length 224mm(8.82")
Cable 30m 13mm synthetic rope Dyneema
Fairlead Aluminum hawse
Battery Recommended 650CCA minimum for winching
Battery Leads 2 gauge, 1.83m (72”)
Finish Orange
Weight GW 50KG (110lb)
Overall Dimensions (LxWxH) 555x196x249mm
Mounting Bolt Pattern 10.00"±0.015"x4.50"±0.010"(254x114.3mm)
Motor Current 65-400A
No Load Line Speed 6.5m/min (21.3 ft/min)



WINCHMAX 17000LB 24V ELECTRIC STEEL CABLE WINCH WITH WIRELESS REMOTES

AU $799.00



*12 MONTH WARRANTY* COMMERCIAL GRADE



  • 17,000lb (almost nearly 7.7 tons) straight line pull
  • 24V Heavy- duty recovery winch.
  • Super powerful 24v 6hp series wound electric motor.
  • Power In / out removable big grip corded handheld remote control unit
  • Massive Ultra Tough three stage gearbox
  • Albright type solenoids
  • Sliding Ring Gear Free wheel clutch
  • New upgrade; gearbox cover cylinder is now machined billet steel for ultimate protection from accidental impact damage
  • Pair of long- range heavy- duty wireless remotes



Single line rated pull 17000lb(7692kg)
Motor 6.0hp/4.5kw,Series Wound
Control Remote Switch, 12ft(3.7m) lead , In and Out
Gear train 3 Stage Planetary
Gear reduction ratio 358:01:00
Clutch Sliding Ring Gear
Braking Action Automatic In The Drum
Drum size Diameter 85mm (3.4") Length 224mm(8.82")
Cable 26m (85ft) of 12mm diameter
Fairlead 4-Way Roller Fairlead
Battery Recommended 650CCA minimum for winching
Battery Leads 2 gauge, 1.83m (72")
Finish Orange
Weight GW 58KG (110lb)
Overall Dimensions (LxWxH) 555x196x249mm
Mounting Bolt Pattern 10.00"±0.015"x4.50"±0.010"(254x114.3mm)
Motor Current 65-400A
No Load Line Speed 6.5m/min (21.3 ft/min)



WINCHMAX 17000LB 24V ELECTRIC WINCH DYNEEMA SYNTHETIC ROPE WITH WIRELESS REMOTES

AU $999.00



 *12 MONTH WARRANTY* COMMERCIAL GRADE



  • 17,000lb (almost nearly 7.7 tons) straight line pull
  • 24V Heavy- duty recovery winch.
  • Super powerful 24V 6hp series wound electric motor.
  • Power In / out removable big grip corded handheld remote control unit
  • Massive Ultra Tough three stage gearbox
  • Albright type solenoids
  • Sliding Ring Gear Free wheel clutch
  • New upgrade; gearbox cover cylinder is now machined billet steel for ultimate protection from accidental impact damage
  • Pair of long- range heavy- duty wireless remotes



Single line rated pull 17000lb(7692kg)
Motor 6.0hp/4.5kw,Series Wound
Control Remote Switch, 12ft(3.7m) lead , In and Out
Gear train 3 Stage Planetary
Gear reduction ratio 358:01:00
Clutch Sliding Ring Gear
Braking Action Automatic In The Drum
Drum size Diameter 85mm (3.4") Length 224mm(8.82")
Cable 30m x 13mm DYNEEMA SYNTHETIC ROPE
Fairlead Hawse
Battery Recommended 650CCA minimum for winching
Battery Leads 2 gauge, 1.83m (72")
Finish Orange
Weight GW 50KG (110lb)
Overall Dimensions (LxWxH) 555x196x249mm
Mounting Bolt Pattern 10.00"±0.015"x4.50"±0.010"(254x114.3mm)
Motor Current 65-400A
No Load Line Speed 6.5m/min (21.3 ft/min)

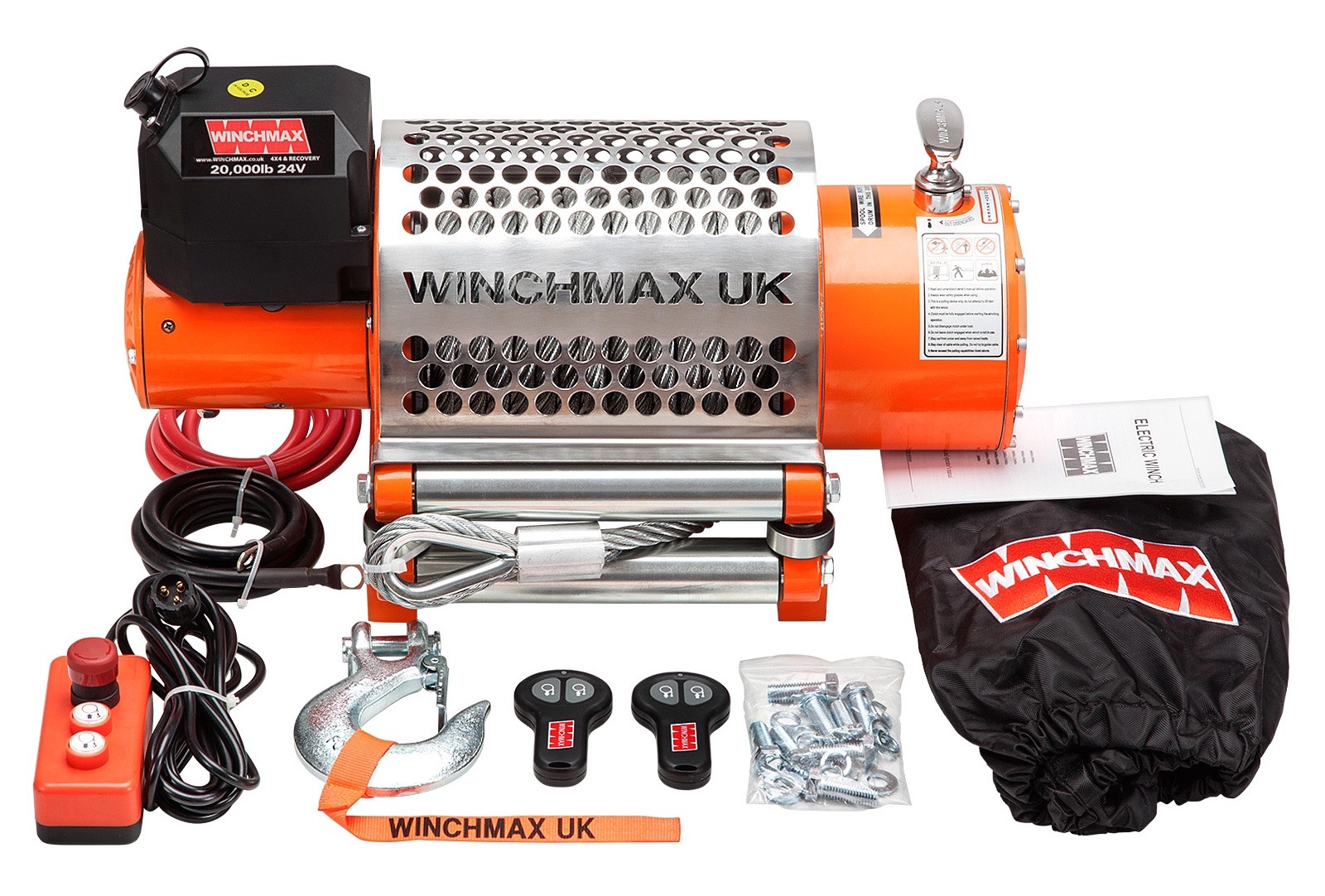

WINCHMAX 24V 20000LB RECOVERY WINCH

AU $1,199.00




  • 20,000lb (9072 KG) straight straight line pull
  • Latest technology long range wireless remote
  • Super powerful 24v 6.3hp/4.75KW series wound electric motor
  • Power In / Out big grip handheld unit - with large emergency stop button
  • Massive Ultra Tough FOUR stage gearbox with hardened steel gears
  • Motor and gearbox casing machined from billet steel for maximum impact protection
  • Sliding ring gear free-wheel clutch.
  • Super Heavy Duty Four Roller Fairlead - Attached To Winch (NO MOUNTING PLATE REQUIRED)
  • High tensile fixing bolt kit.
  • 1/2" Grade 70 forged clevis hook with safety catch and hand saver. Zinc plated for corrosion resistance.
  • Heavy duty & built to last - gross weight 85KG
  • CE Certified & Built to ISO9001 Quality Management System Requirements






Single line rated pull 20,000lb(9072kg)
Voltage 24V DC
Motor 6.3HP/4.75KW, Series Wound
Control Remote Switch, 12ft (3.7m) Lead, In & Out
Gear train 4 Stage Planetary
Gear reduction ratio 544:1
Clutch Sliding Ring Gear
Braking Action Automatic
Drum size Diameter (3.5") 89mm Length (9") 228.6mm
Cable 26m of 14mm Diameter Steel Wire Rope (9/16" 85ft)
Fairlead Heavy Duty 4 Way Roller Fairlead
Remote Control 2 x Long Range Remote Controls Included
Battery Reccommended: 750CCA Minimum For Winching
Finish Orange / Black / Stainless Steel
Weight GW 85KG
Overall Dimensions(LxWxH) 576x302x305mm
Mounting Bolt Pattern 10.00” x 4.50” (254x114.3mm)
No Load Line Speed 5.1m/min (16.73 ft/min)
Hook 1/2" Grade 70 forged clevis hook



Layer Rated

 Line pull (Lbs)

 Line Pull (Kgs)

 Total Rope On Drum (ft/m)

 1

 20000

 9091

15.62/4.76

 2

 15725

 7132

 35.43/10.8

 3

 12956

 5877

 59.55/18.15

 4

 11016

 5336

 85.30/26





Line Pull (lbs/kgs)

 Line Speed ft/min (m/min)

 Motor (Amps)

 0 (0)

 16.73ft (5.1m)

 82A

 4000 (1814)

 8.20ft (2.5m)

 128A

 8000 (3629)

 7.22ft (2.2m)

 210A

 12000 (5443)

 6.23ft (1.9m)

 278A

 16000 (7257)

 4.92ft (1.5m)

 365A

 20000 (9072)

 3.6ft (1.1m)

 420A
